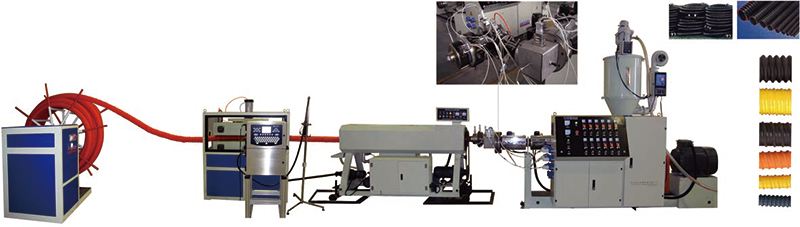

PE carbon spiral reinforced pipe production line

1.With special single screw extruder, It have high speed extrusion,and high speed advantages.

2.The special detached type compounding screw and die head with spiral structure & reasonable channel are applicable to produce smooth inside and outside face.

3.Unique calibration and cooling mode is capable of producing pipe with diameter from 50 to 200mm,production speed is up to 0.4-1.5m/min

4.The standard design of pipe die

5.Optimized spirl copper calibration sleeve have cooling device and powerful vacuum device.The pipe is suitable for high-speed extrusion.

6.Specially designed sprinkler bring efficient spray cooling,Longitudinal movement of the motor to adjust,up down left right can realize Three-dimensional adjustmen

7.High efficiency water and special sprinkler bring efficient spray equipment

Application:

The product has been widely used in ground covering project of city street lamp lines, laying and ground covering of electrified railway power and communication cables, construction and reconstruction of highway power and communication installations, cable ground covering projects of residential area construction and park and large entertainment places etc. It is the optimal ground covering cable protection pipe.





Model

SJ-65B

SJ-90B

L/D

30

33

Pipe diameter

25-100

75-200

prodcuction power

20-60

50-100

Production speed

0.8-1.5

0.8-1.5
