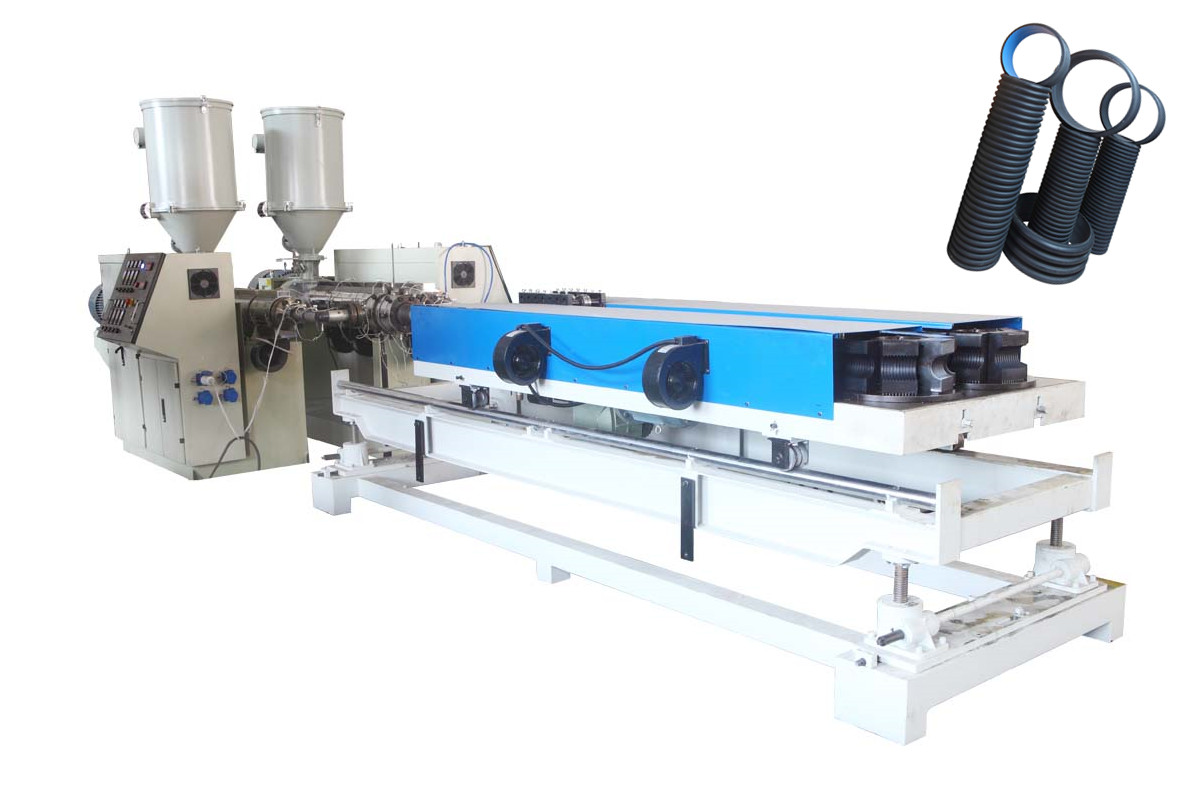

50-110mm seepage pipe production line

Introduction:

It is fully computer controlled,automatic production line (Ø50-Ø110). It has features of high and stable output capacity,and highly automatic operation. According to the material situation, for HDPE, you can choose high efficient single screw extruder.For PVC, you can choose conical twin screw extruder. The forming system of this line consists of mould and corrugator. The mould blocks can be easily changed and they are equipped with air or water cooling system. The production line can also be equipped with SIEMENS control system.

Final products application:

Storm water and sewerage; Drainage pipes for fields, streets, roads, squares and buildings; Conveyor pipes; Protection pipes for tv, glassfiber, telephone, electricity, IT and computer;Protection pipes for cables, district heating systems, domestic connection lines ,structural and civil engineering.






Model

SGB250

SGB110

Structure Form

Horizontal

Horizontal

Applicable Raw Materials

HDPE/PP/PVC

HDPE/PP/PVC

Pipe Diameter Range(mm)

75-250

50-110

Max Extrusion Output(kg/h)

200

100

Forming Speed(m/min)

0.6-5

0.8-6

Centre Height(mm)

1000

1000

Number of Mold Blocks(pairs)

50

50

Total lnstalled power(kw)

150

95
